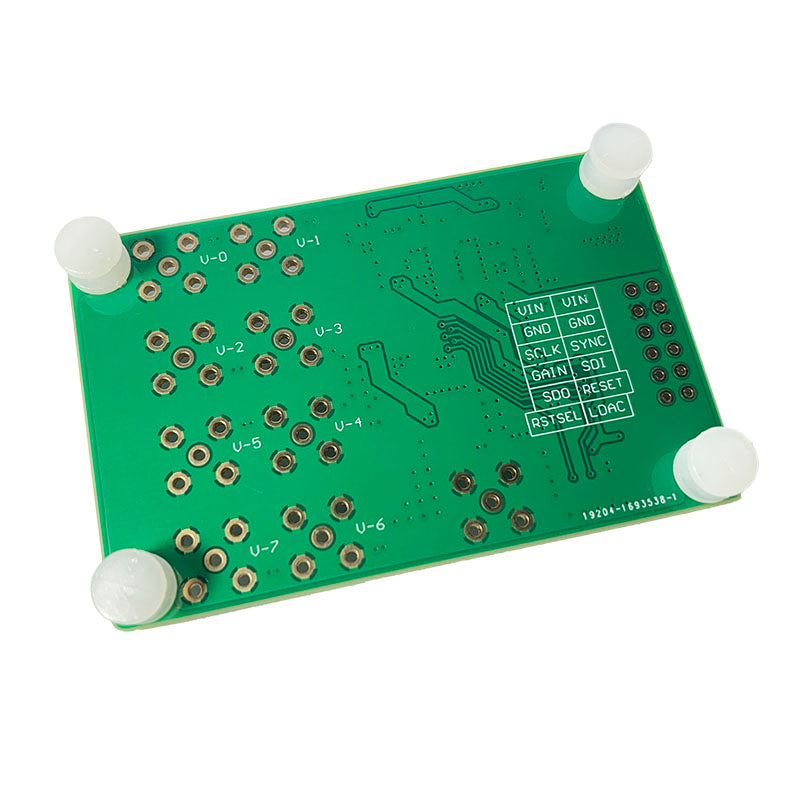

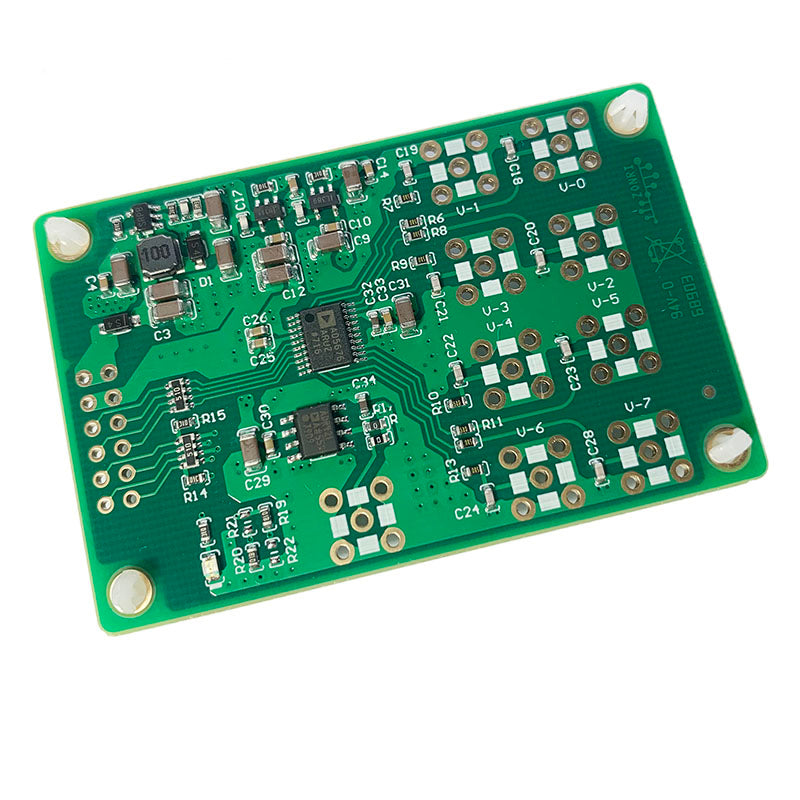

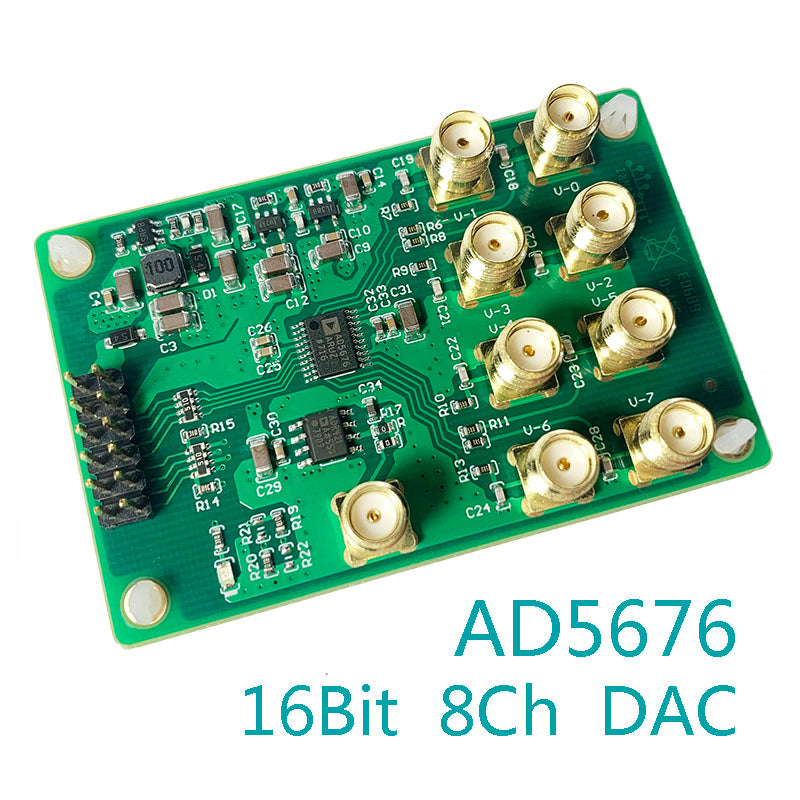

AD5676 16Bit 8CH Channel DAC Module AD5676ARZ AD5676BRZ

Specifications:

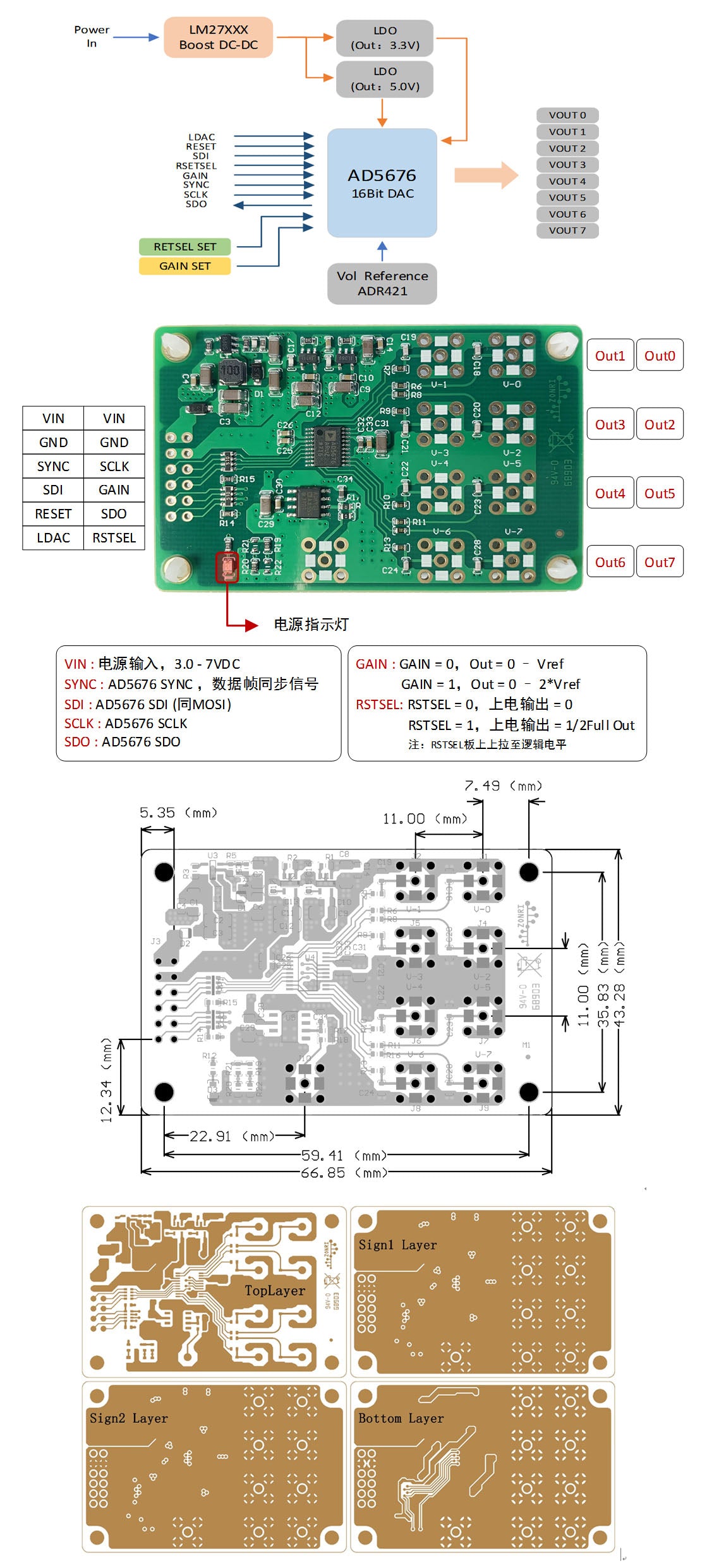

• Complete AD5676 Application Module
• Single power supply: 3.0–7 VDC
• 8-channel 16-bit DAC
• Output ranges: 0V–2.5V / 0V–5.0V, max output current 15mA
• Typical settling time: 8μS (¼ to ¾ scale settling to ±2 LSB)

Q: Are the connectors pre-soldered?
A: No, the connectors are not pre-soldered.

Q: What is the difference between AD5676ARZ and AD5676BRZ?
A: They differ in accuracy grade. Refer to Datasheet Page 4 Table 2 for details. The AD5676B offers higher precision than the AD5676A.

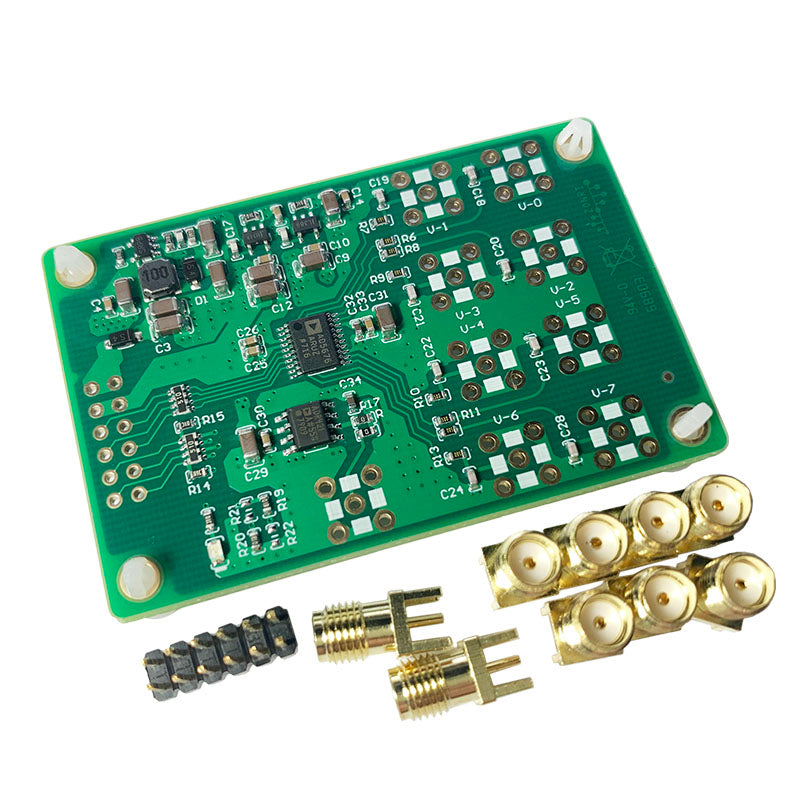

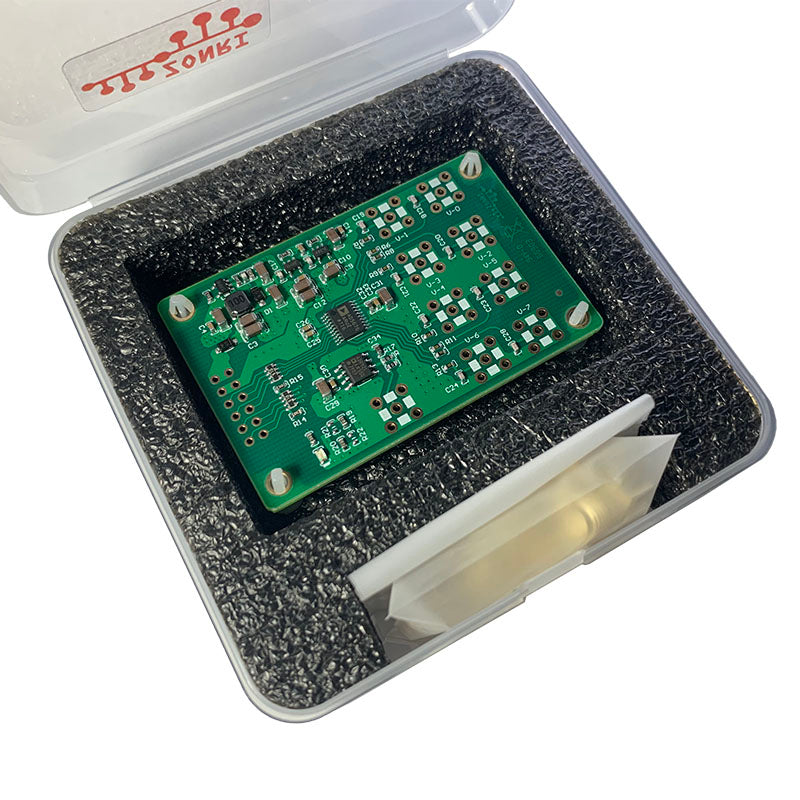

Packing List:

• AD5676 Module × 1
• 2.54mm 2×6 Pin Header × 1
• SMA Connector × 9
