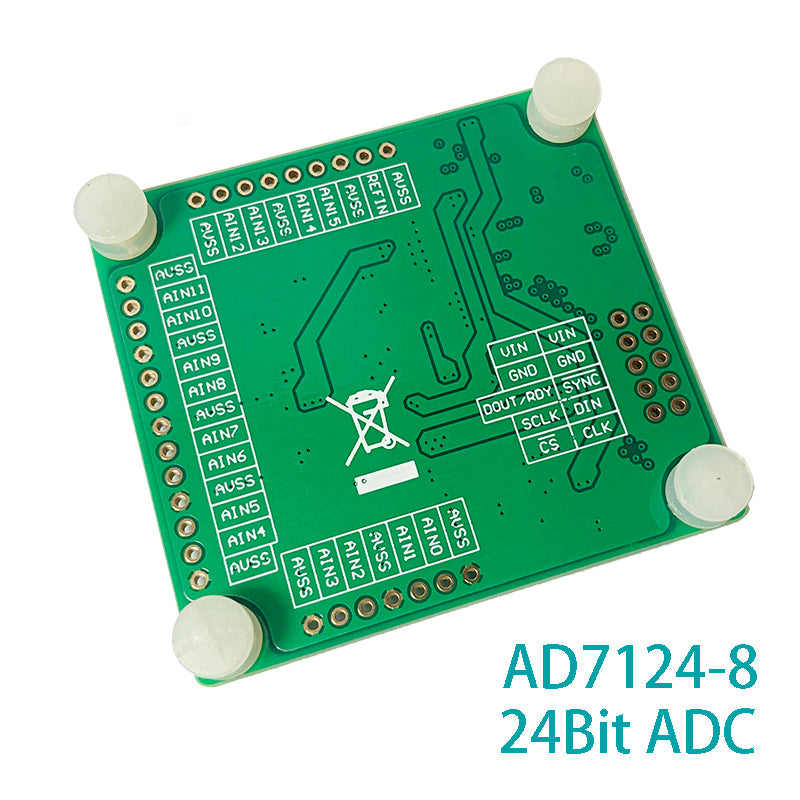

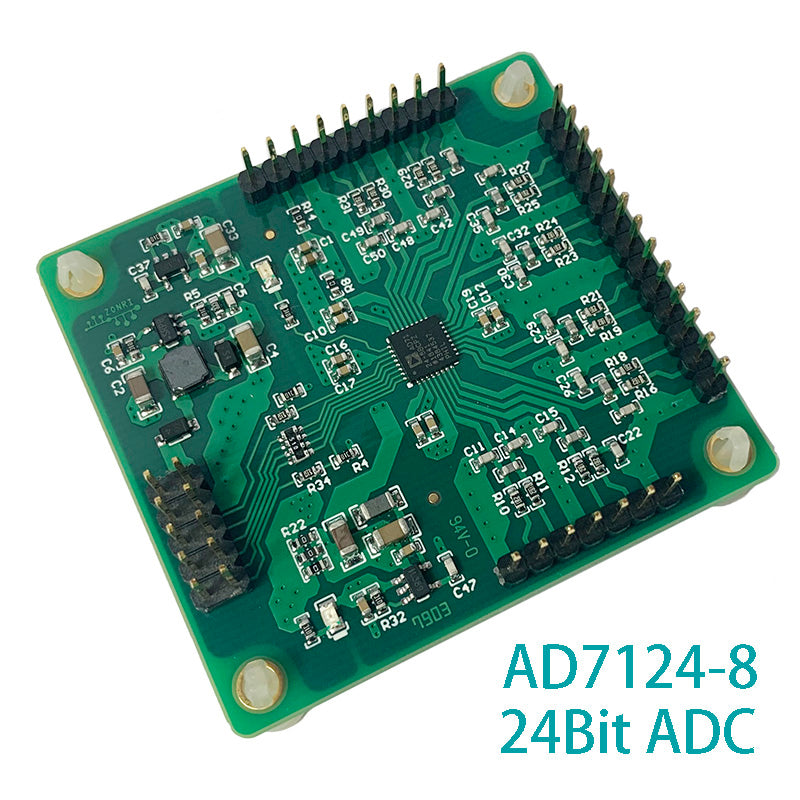

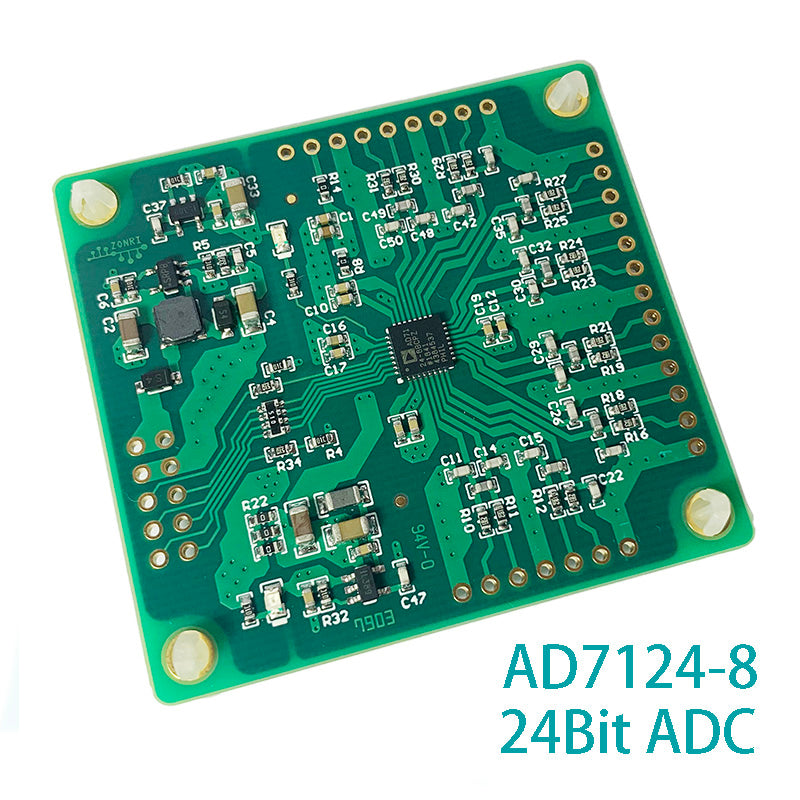

Ad7124-8 24Bit Multi-channel ADC Data Acquisition Module

Specifications:

• Complete AD7124-8 Application Solution
• Wide Supply Voltage: 2.7–6 VDC.
• Highly Configurable: Programmable channels, filters, and excitation current sources. On-chip high-precision voltage reference
• Multi-Channel Sequencing: Supports automated scanning for multi-sensor acquisition
• Flexible Input Configuration: 16 single-ended or 8 differential input channels
• High-Speed Sampling: Up to 19.2 kSPS (single-channel mode)
• Ultra-Low Power Consumption: 3 mA @5V (full-power mode); 5.1 mA @3.3V (full-power mode).

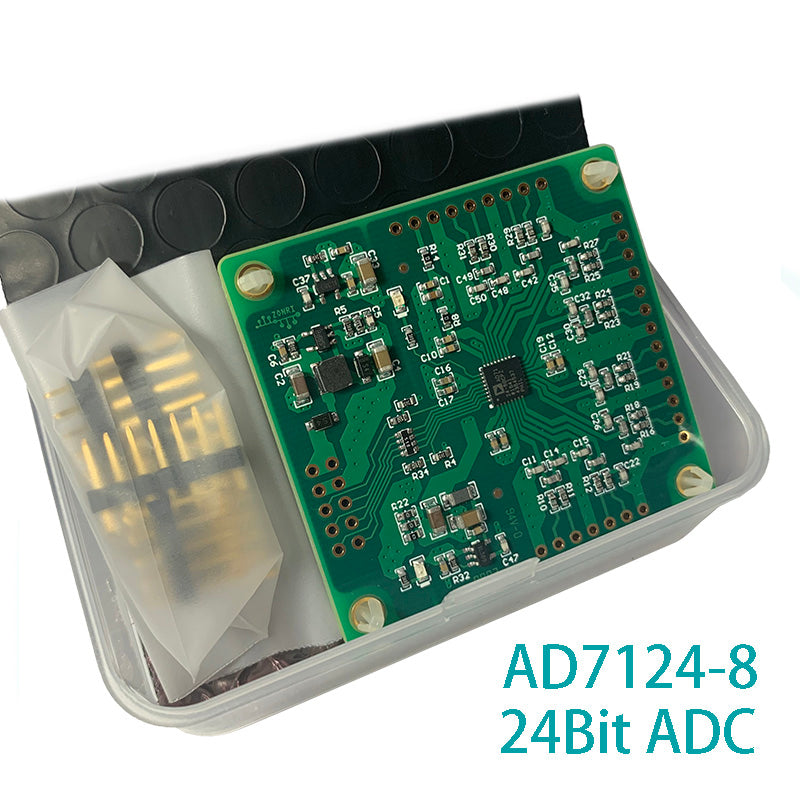

Packing List:

1. AD7124-8 Evaluation Module × 1
2. 2.54mm 2×5 Pin Header × 1
3. 2.54mm 1×9 Pin Header × 1
4. 2.54mm 1×7 Pin Header × 1
5. 2.54mm 1×13 Pin Header × 1
