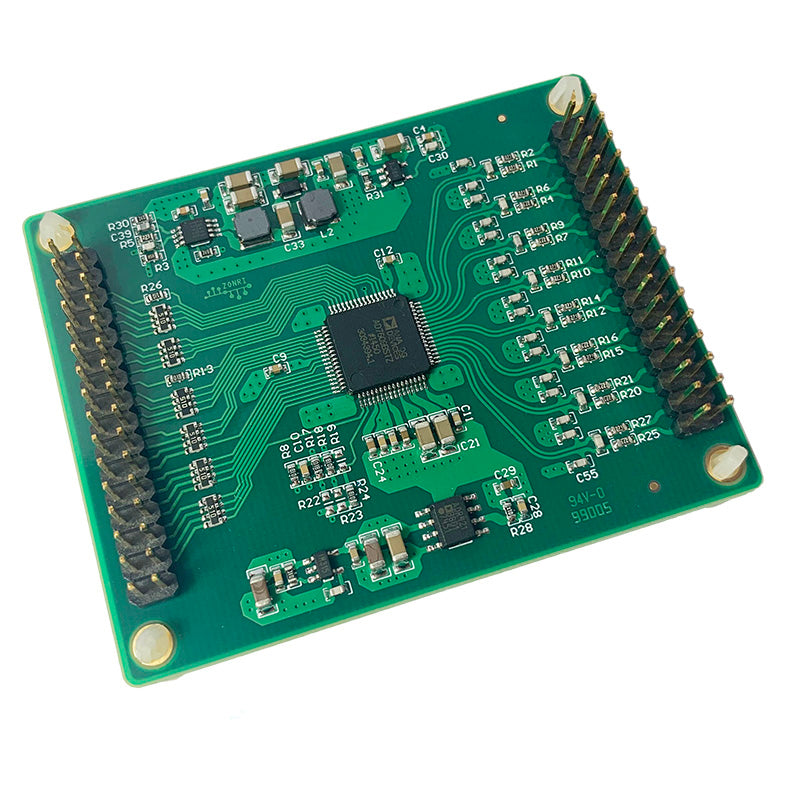

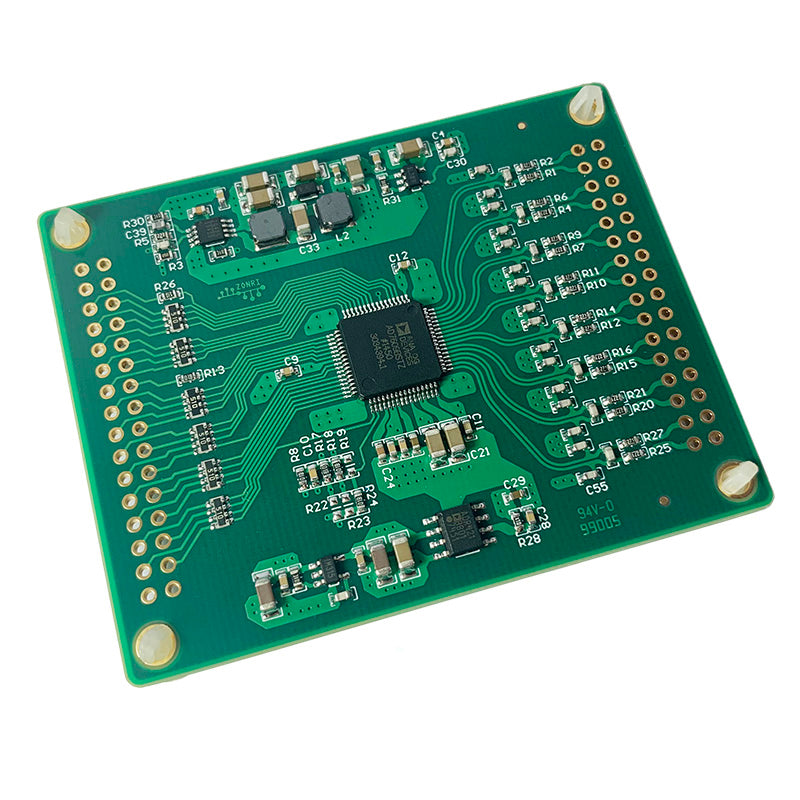

AD7609 8 Channel Module Parallel 18Bit/ 200kSPS ADC/ Differential Input 10V/5V

Specification:

• Complete AD7609 Application Solution
• 8-Channel, 18-Bit Parallel Acquisition, sampling rate: 200 kSPS.
• Wide Single-Supply Range: 2.7V to 8V DC.
• Flexible Configuration Options: Selectable serial/parallel data interface. Programmable input ranges, Configurable internal/external voltage reference.
• Fully Differential Inputs, supports ±10V and ±5V input ranges.
• On-Board Precision Reference: ADR421 ultra-low-noise voltage reference (default: external reference mode).
• Default Configuration: ±10V input range.

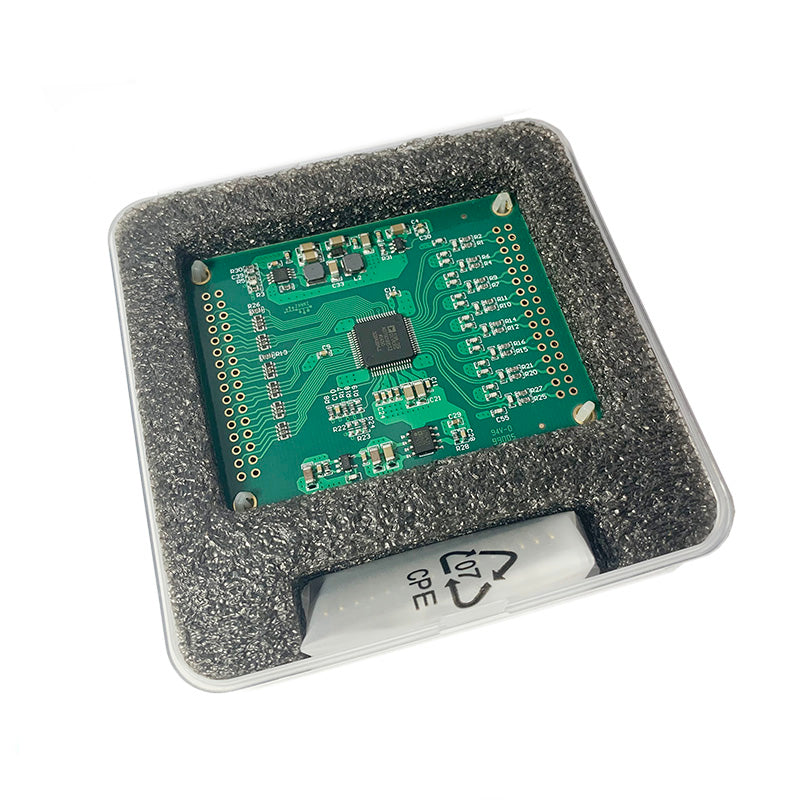

Packing List:

1. AD7609 Module × 1
2. 2.54mm 2×16 Pin Header × 1
