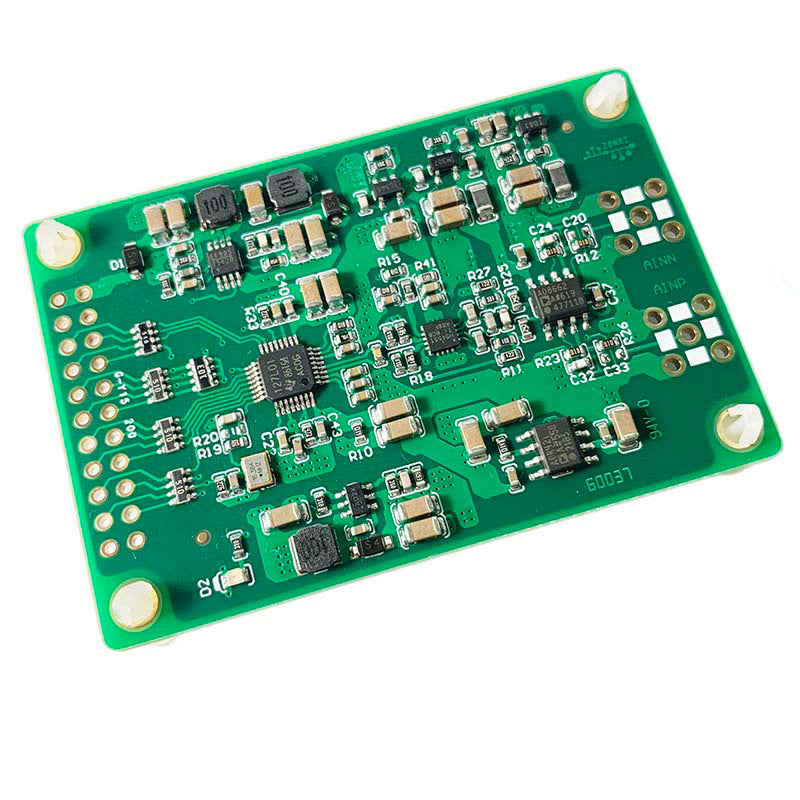

ADS127L01 Module /24Bit 512Ksps ADC Module /10V Input

Specifications:

• Wide supply voltage range: 2.7–8 VDC

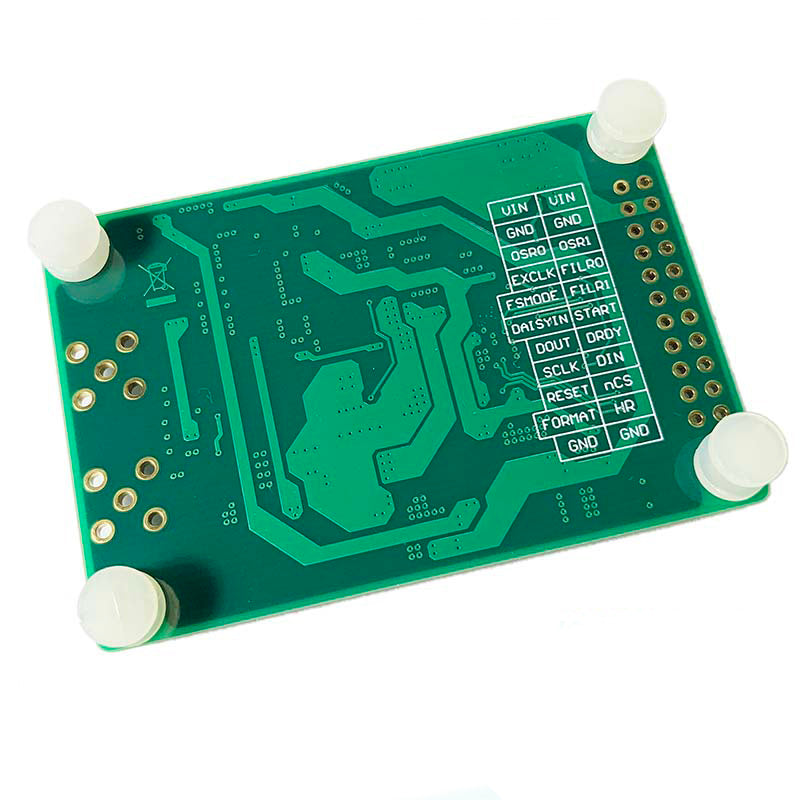

• All digital IOs exposed, supports external ADC clock switching
• ±5V-powered input buffer, providing high-impedance input within ±5V range
• Easy to use—only requires a single external power supply (typical operating current: 49mA @5V)
• Maximum sampling rate: 512 ksps (data update rate)

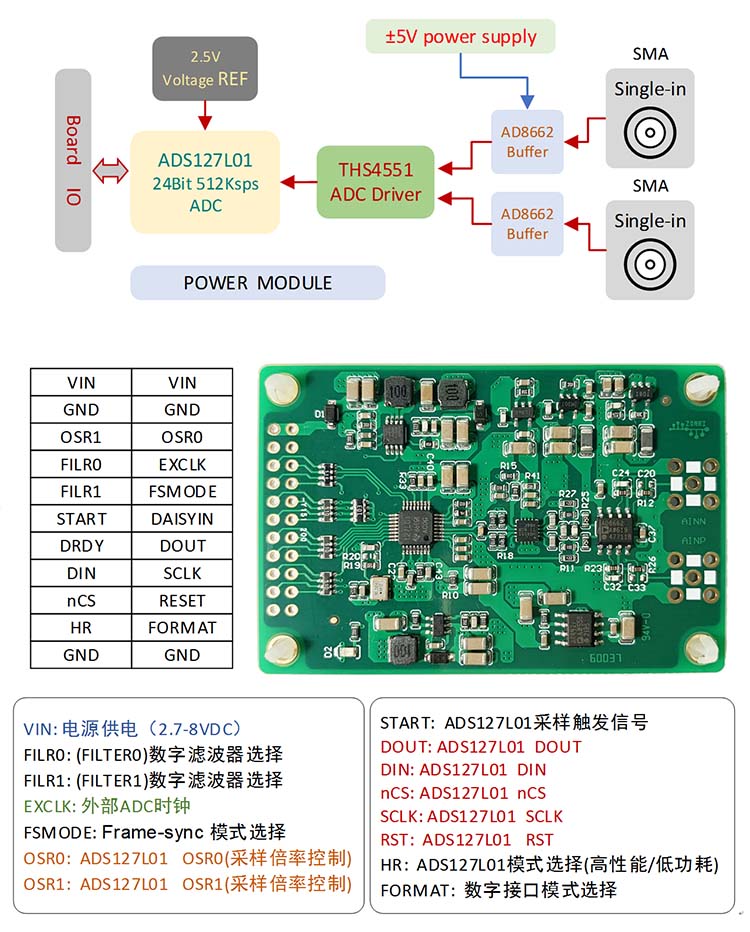

• Complete signal chain: Buffer, ADC driver, and ADC analog path with excellent adaptability

Q: What is the noise performance?
A: Please download the documentation at the bottom of the page. Noise test waveforms are provided on Page 7 of the manual.
